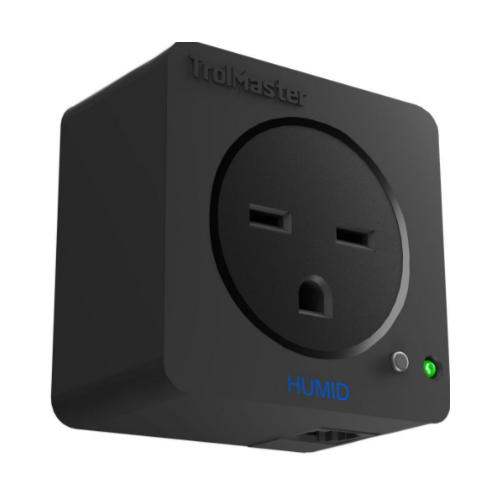

Trolmaster Hydro-X Humidity Device Station DSH-2

Image for display purposes comes with AUS plug

240V Humidity Device Station（DSH-2）

The TrolMaster DSH-2 Humidity control / device modules (240V) allow the user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. The DSH modules are rated @ 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.

<sub>LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.</sub>

_{Package Content}

1 x Device Station

1 x 16ft RJ12 Cable

1 x 4ft RJ12 Cable

1 x RJ12 T-Splitter
